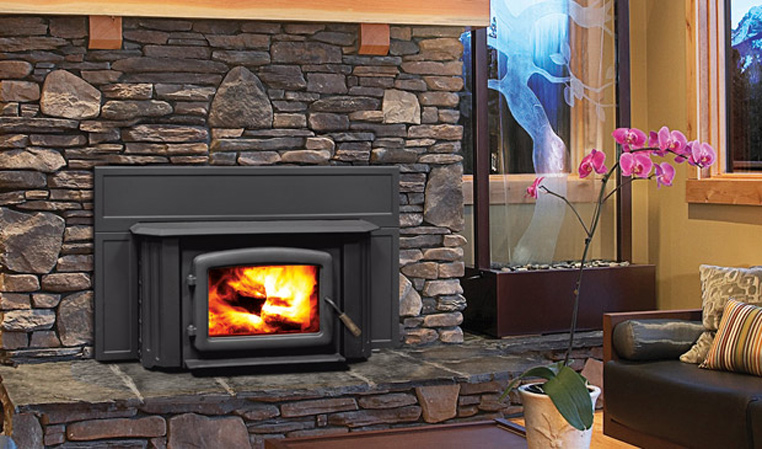

Kodiak 1200 Wood Fireplace Insert

Options

  • Kodiak Regular Panel with Trim
    46.125″ W x 28″ H
  • Kodiak Oversize Panel with Trim
    46.125″ W x 33″ H
  • Cast Iron Door in Painted, Gold or Nickel Finish and Painted Door with Gold or Nickel Trim.
  • Angled Flue Collar.

Specifications

  • Heating Area – 2,200 ft²
  • BTU’s – 67,000
  • Efficiency – 82.6%
  • Glass Size – 177 in²
  • Convection Fan – 150 CFM
  • EPA Emissions – 3.3 gms
  • Log Size – 18”
  • Burn Time – 6-10 hrs
  • Firebox Size – 1.85 ft²
  • Weight – 335 lbs
  • Dimensions – 27” W x 19” H x 13” D

Features

  • Side air damper rod stays cool to the touch.
  • Single, easy-to-use draft control to easily regulate fire.
  • Twin pilot-injector ports for easy start up.
  • Ultra strong air wash to keep glass clean.
  • 3 x 1″ 304 grade stainless steel secondary air tubes.
  • Brick-lined firebox with 6″ flute.
  • Ceramic top baffle.
  • Mobile home approved.
  • Heavy-duty construction.
  • 5/16″ thick steel top and ash shelf on flat top models.
  • 1/2″ diameter door handle and hinge pins.
  • Cast iron adjustable door latch.
